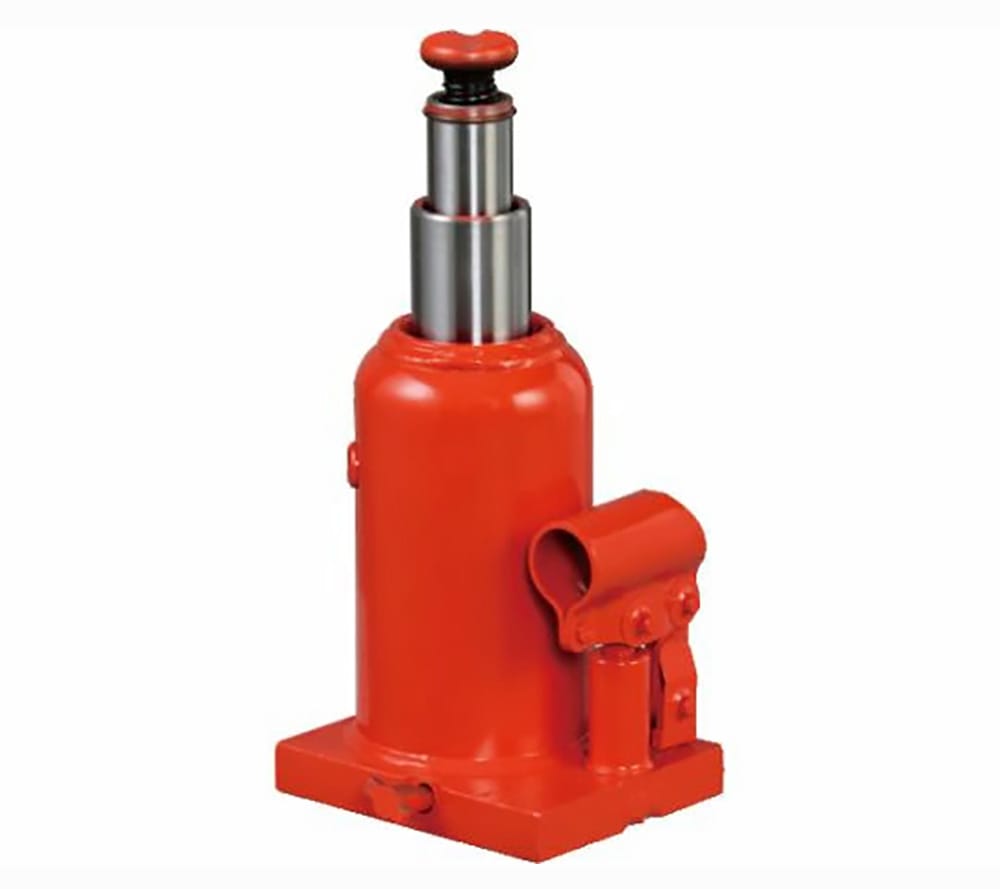

2. Multi Stage Jacks
MPD-10
Capacity:10t
Min.Height:170mm/6.7in
Max.Height:420mm/16.5in
Characteristics
1.Welding Forming Process
The product is formed by one-piece welding, featuring a sturdy structure that remains deformation-free after prolonged use.Used widely from a low position to high position.
2.Japanese oil seal
Japanese original seals eliminate the risk of oil leakage for products.
3.Forged base
The base is forged integrally, and the structure is firm and stable as Mount Tai.
4.Produced by Japanese equipment
Japanese Masada specialized equipment ensures consistent product performance, enabling efficient and precise production of every unit.
5.1-year warranty
All Masada brand products come with a 1-year warranty, delivering an ultimate experience to high-end customers.
Specifications
| 尺寸 | 685519148 英寸 |
|---|---|
| Capacity |
10t |
| Min. Height |
170mm/6.7in |
| Lifting Height |
180mm/7.1in |
| Extension Screw |
70mm/2.8in |
| Max. Height |
420mm/16.5in |
| Socket Dimensions |
45x47mm |
| Base Dimensions |
118x180mm |
| Handle Dimensions |
Φ21.7x605mm |
| Operating Force |
178N |
| No.of Operations |
279times |
| Required Oil |
440cc |
| Gross mass |
8.6kg/19Lb |
| Certificates |
US California Proposition 65 ,USA ASME PASE-2019 certificate |
