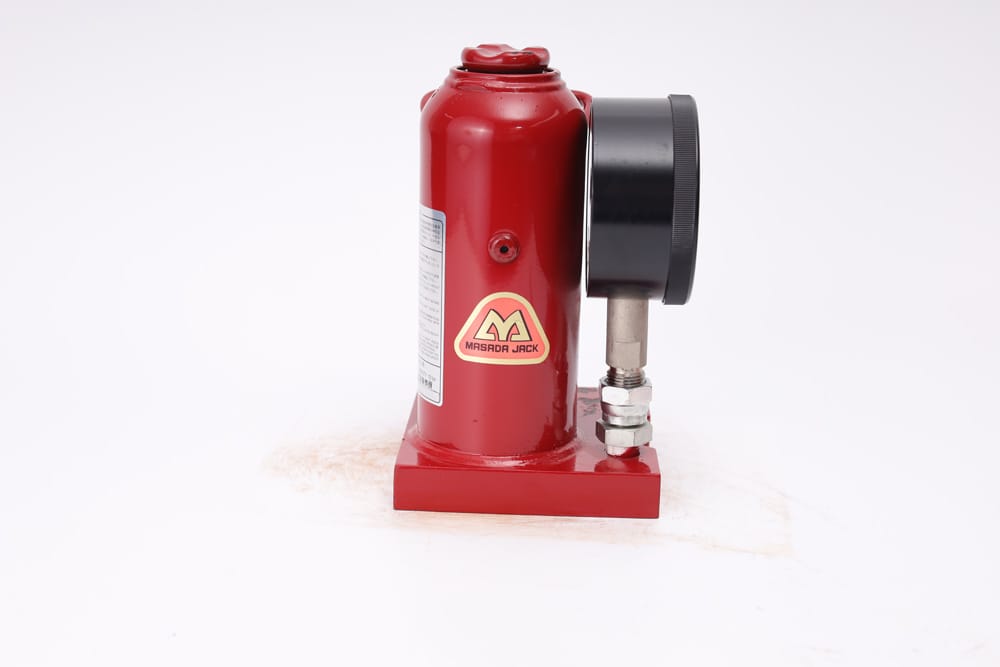

4. Jack With Pressure Gauge
MH-20P / MHU-25P
Capacity:20t / 25t
Min.Height:270mm/10.6in
Max.Height:430mm/16.9in
Characteristics
1.Welding Forming Process
A pressure gauge attatched with the indicate of both capacity(t) and internal pressure(Mpa). The product is formed by one-piece welding, featuring a sturdy structure that remains deformation-free after prolonged use.
2.Japanese oil seal
Japanese original seals eliminate the risk of oil leakage for products.
3.Forged base
The base is forged integrally, and the structure is firm and stable as Mount Tai.
4.Produced by Japanese equipment
Japanese Masada specialized equipment ensures consistent product performance, enabling efficient and precise production of every unit.
5.1-year warranty
All Masada brand products come with a 1-year warranty, delivering an ultimate experience to high-end customers.
Specifications
| 尺寸 | 685519148 英寸 |
|---|---|
| Capacity |
20t ,25t |
| Min. Height |
270mm/10.6in |
| Lifting Height |
160mm/6.3in |
| Max. Height |
430mm/16.9in |
| Socket Dimensions |
Φ52mm |
| Base Dimensions |
152x162mm |
| Handle Dimensions |
Φ27.2x730mm |
| Operating Force |
324N |
| No.of Operations |
125times |
| Required Oil |
487cc |
| Gross mass |
14.3kg/31.6Lb |
| Certificates |
US California Proposition 65 ,USA ASME PASE-2019 certificate |
