Characteristics

1.Welding Forming Process

The product is formed by one-piece welding, featuring a sturdy structure that remains deformation-free after prolonged use.
Japanese original seals eliminate the risk of oil leakage for products.
The base and claws are forged in one piece, with a thickened design that is sturdy, durable, and does not deform.Handle socket rotates 180°,avoiding obstacles.
Japanese Masada specialized equipment ensures consistent product performance, enabling efficient and precise production of every unit.

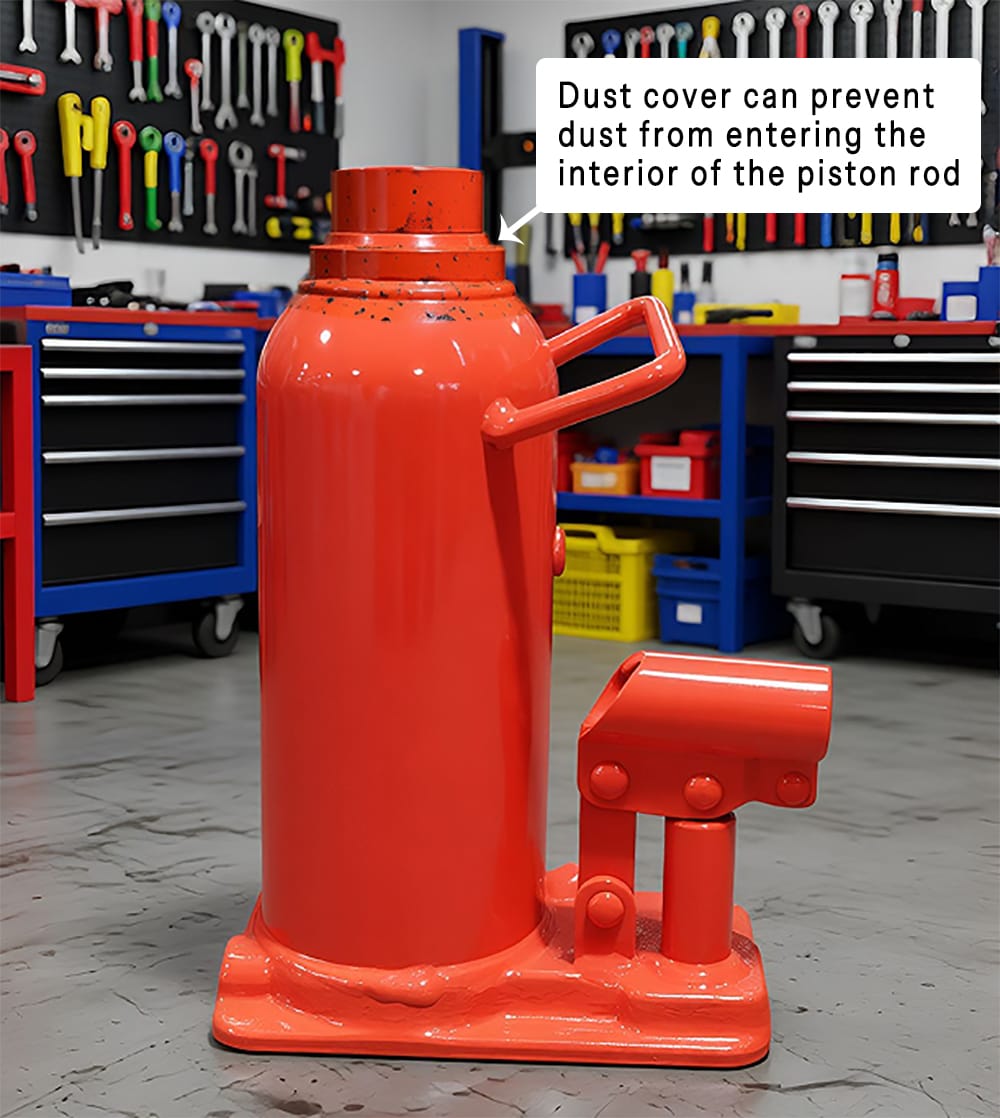

Features a dust cover design, can effectively prevent dust from entering the
interior of the piston rod,making it suitable for use in harsh environments such as open fields and sandy, windy conditions.

The jacks have a guide ring design that enhances the stability of the piston rod, improves load distribution,
and strengthens deformation resistance. Jack can be used at various angles without compromising its lifespan.

All Masada brand products come with a 1-year warranty, delivering an ultimate experience to high-end customers.

Specifications

Product Name
Model
Capacity
Minimum height
Max Height

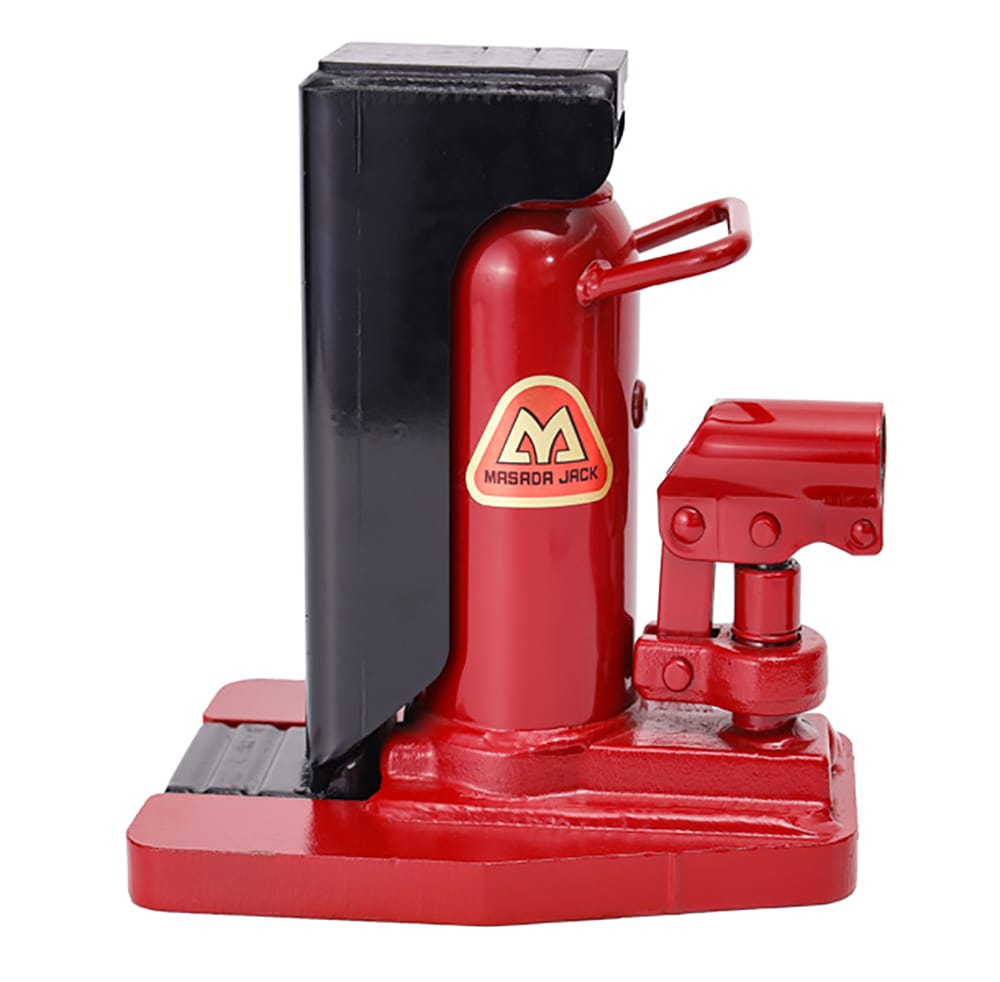

Toe Jacks Return-Springless Type

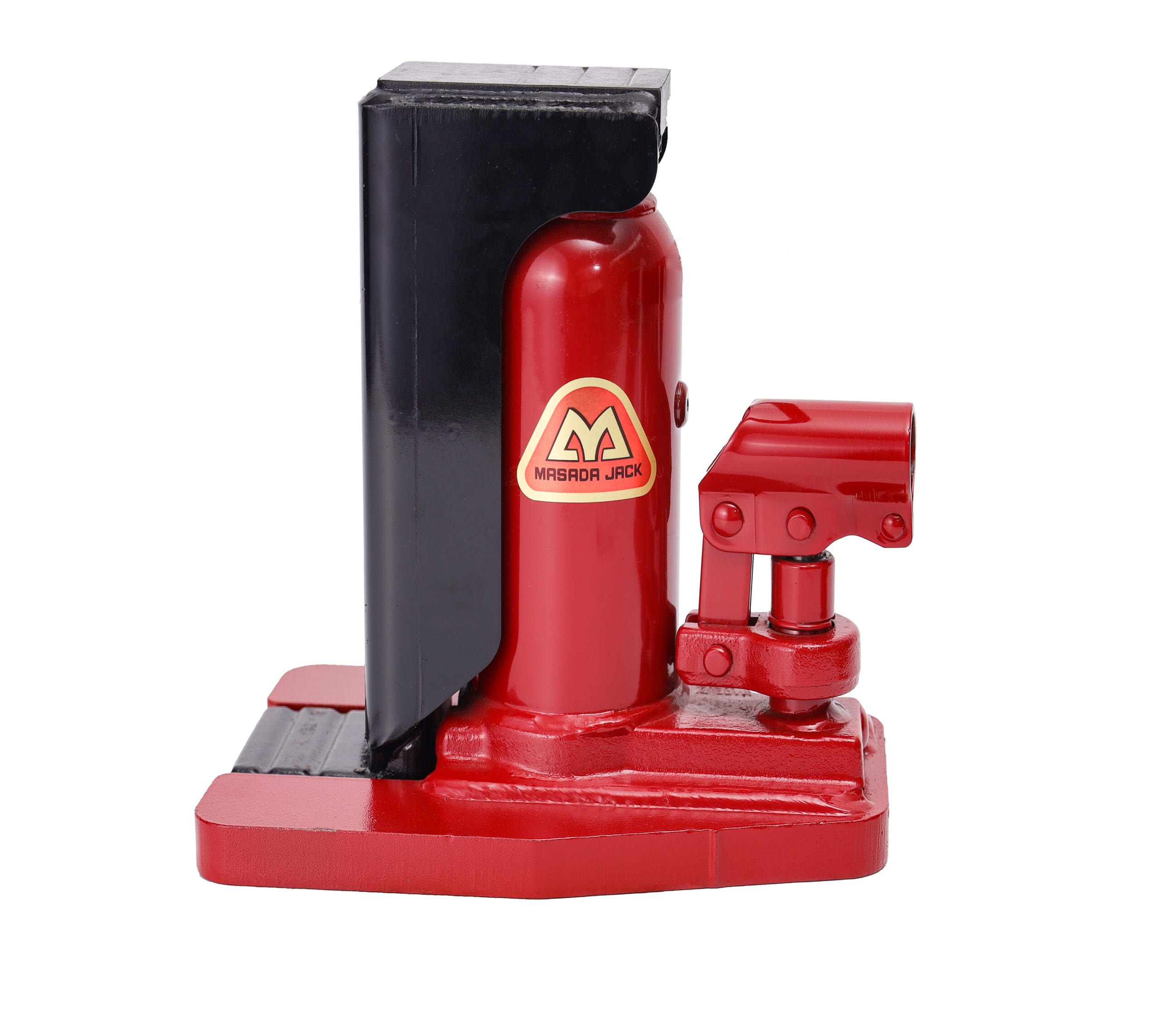

MHCK-1.2T

1.2t on toe/3t on head
205mm/8.1in
310mm/12.2in
Toe Jacks Return-Springless Type

MHCK-2T

2t on toe/5t on head
240mm/9.4in
353mm/13.9in
Toe Jacks Return-Springless Type

MHCK-5T

5t on toe/10t on head
290mm/11.4in
410mm/16.1in

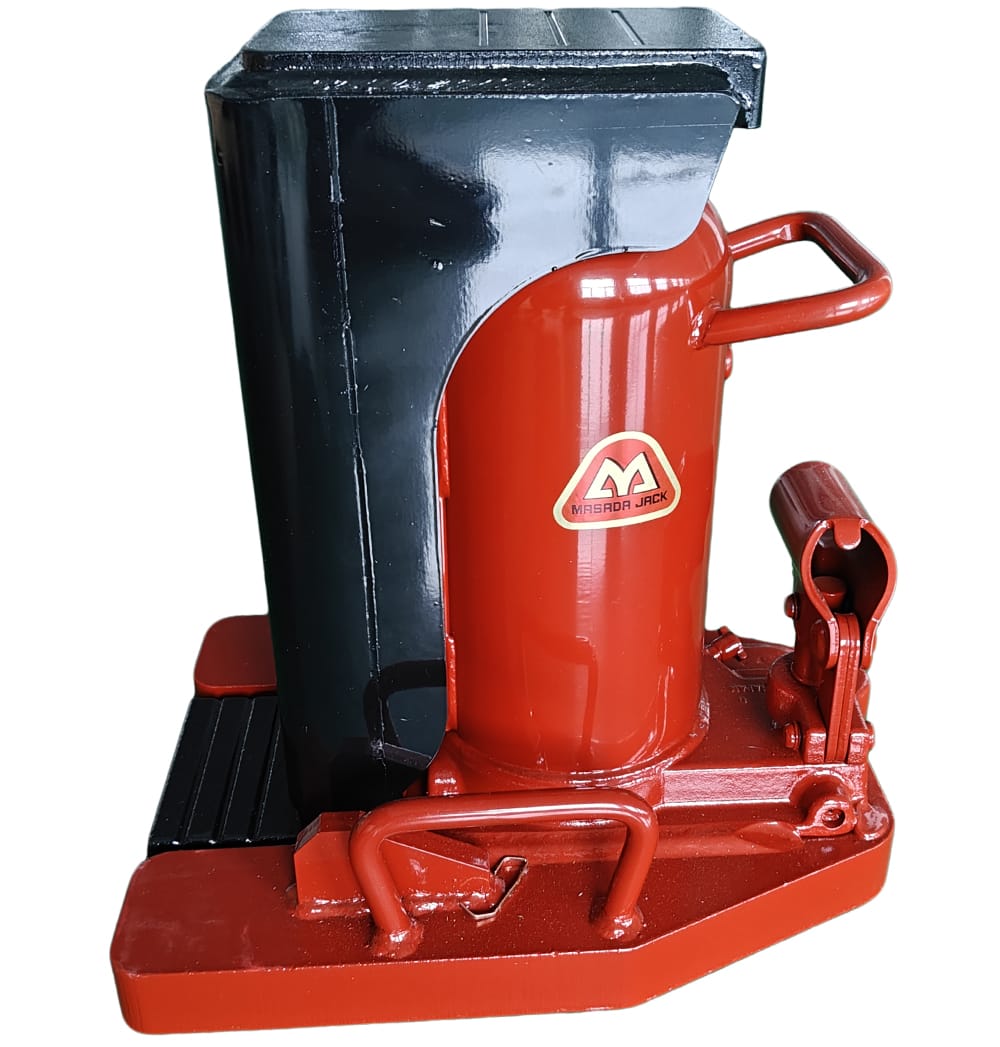

Toe Jacks Return-Springless Type

MHCK-15T

15t on toe/30t on head
345mm/13.6in
485mm/19.1in
Toe Jacks Return-Springless Type

MHCK-10T

10t on toe/20t on head
325mm/12.8in
470mm/18.5in

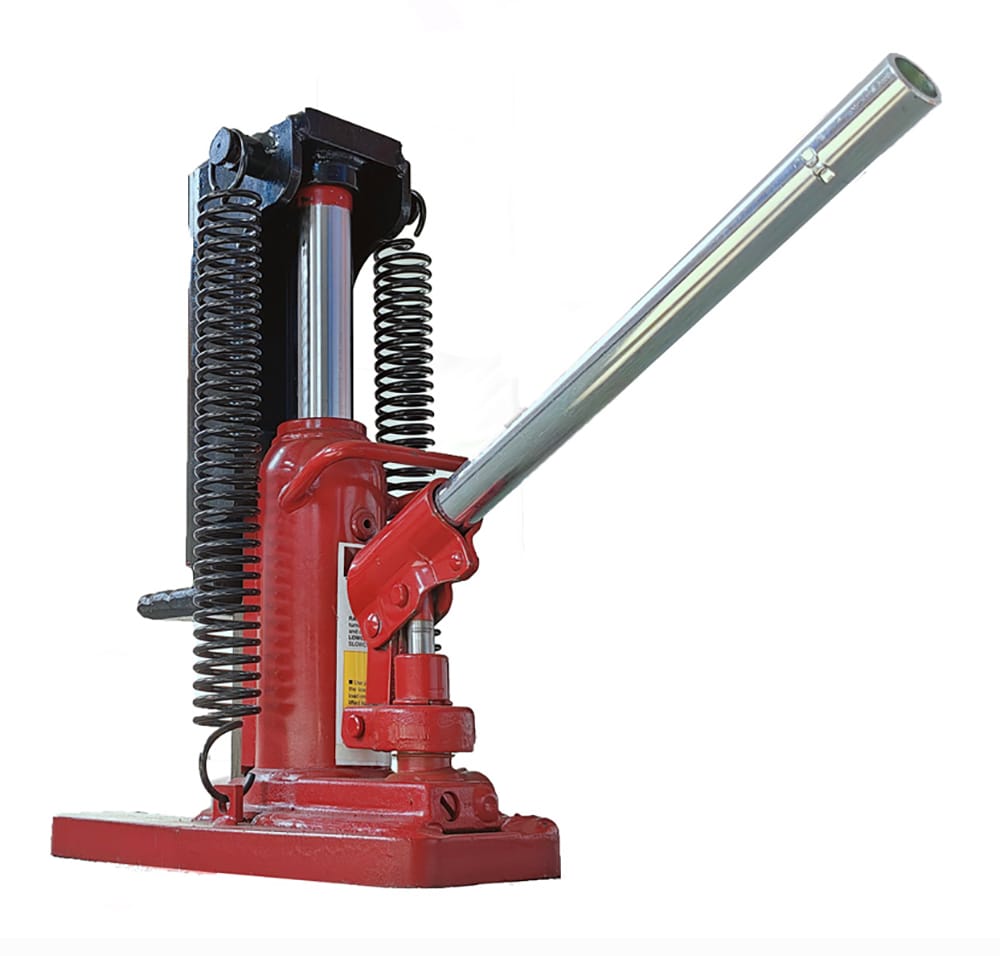

Toe Jacks With Automatic Return Spring

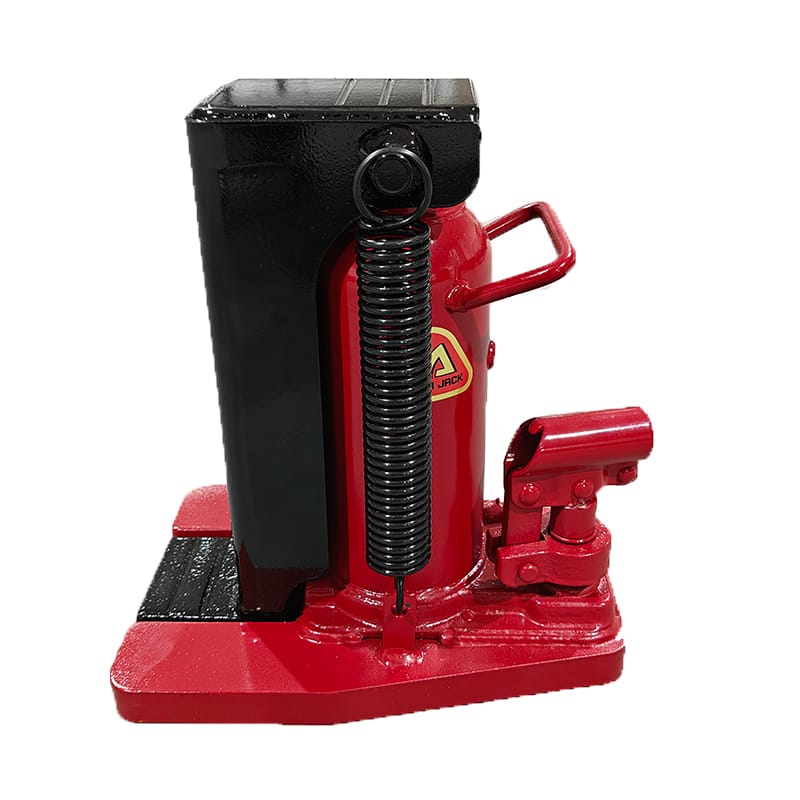

MHCK-5RS-2

5t on toe/10t on head
290mm/11.4in
410mm/16.1in
Toe Jacks With Automatic Return Spring

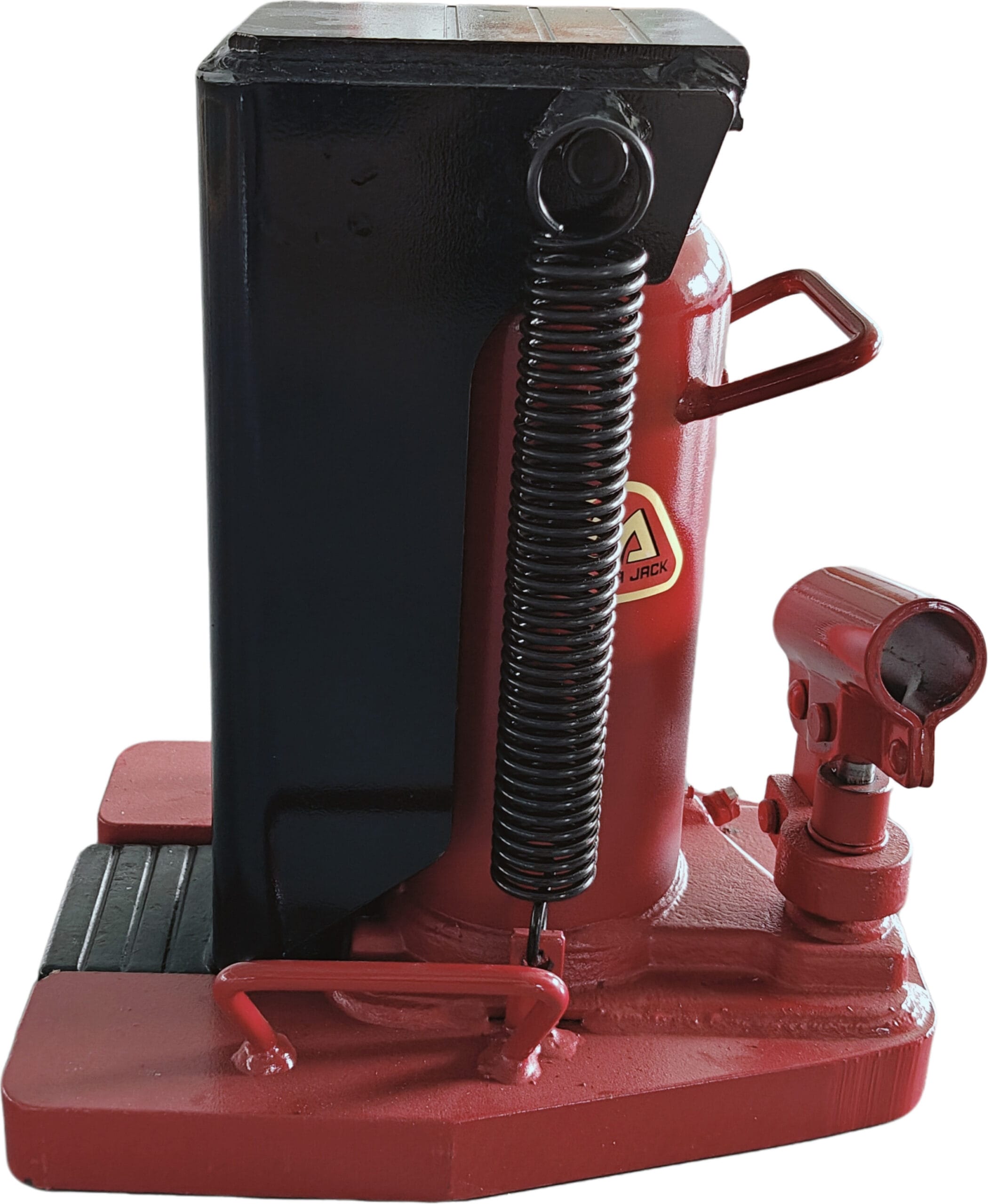

MHCK-10RS-2

10t on toe/20t on head
325mm/12.8in
470mm/18.5in
Toe Jacks With Automatic Return Spring

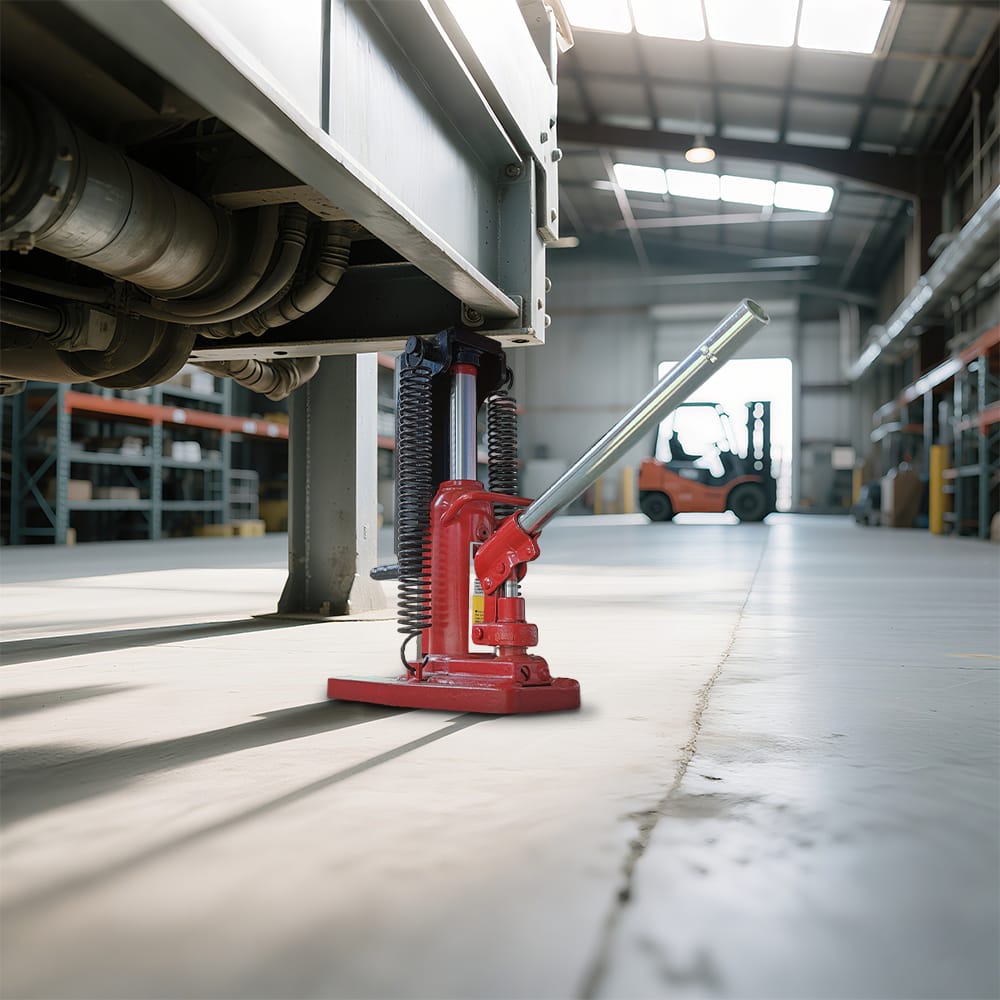

MHCK-2RS-2

2t on toe/5t on head
240mm/9.4in
353mm/13.9in

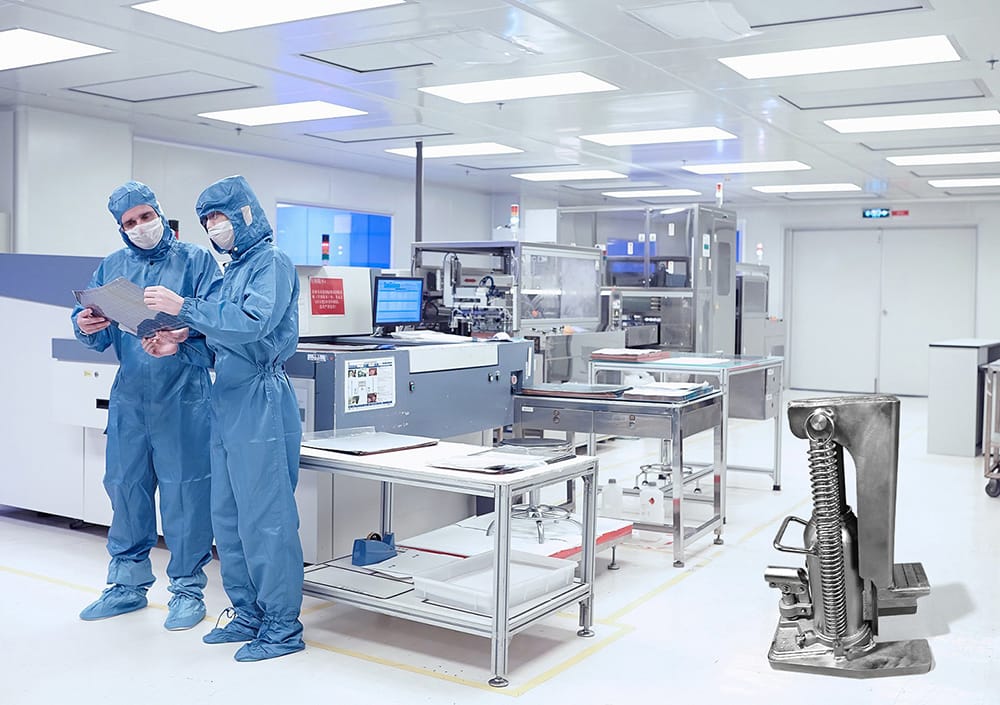

Toe Jacks With Automatic Return Spring For Clean Room

MHCK-5RS-C

5t on toe/10t on head
290mm/11.4in
410mm/16.1in
Toe Jacks With Automatic Return Spring For Clean Room

MHCK-2RS-C

2t on toe/5t on head
243mm/9.6in
356mm/14in

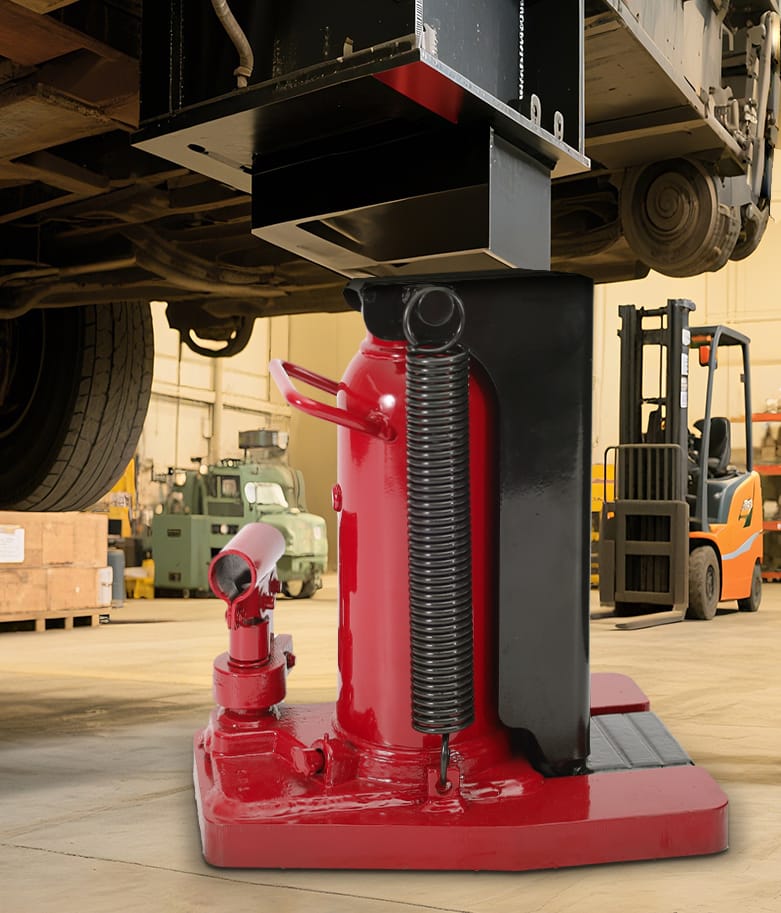

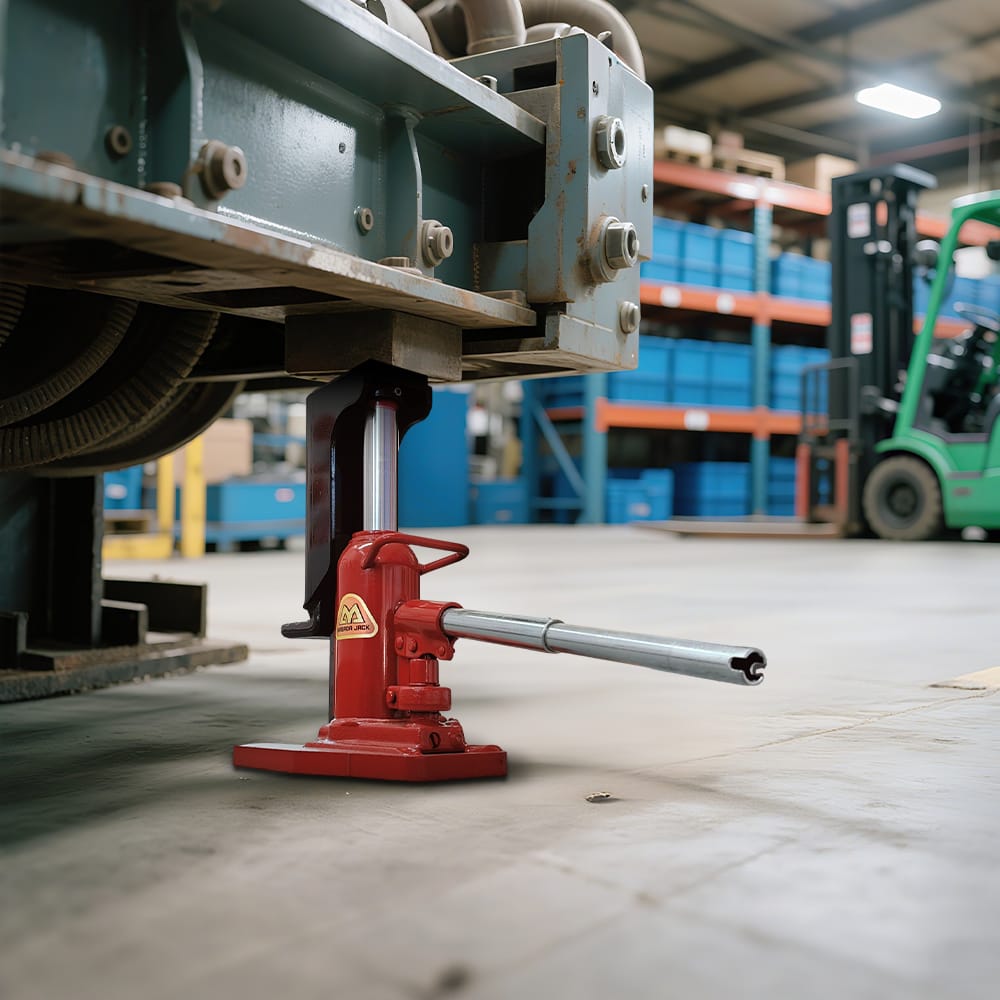

Usage scenario
